Product Type:

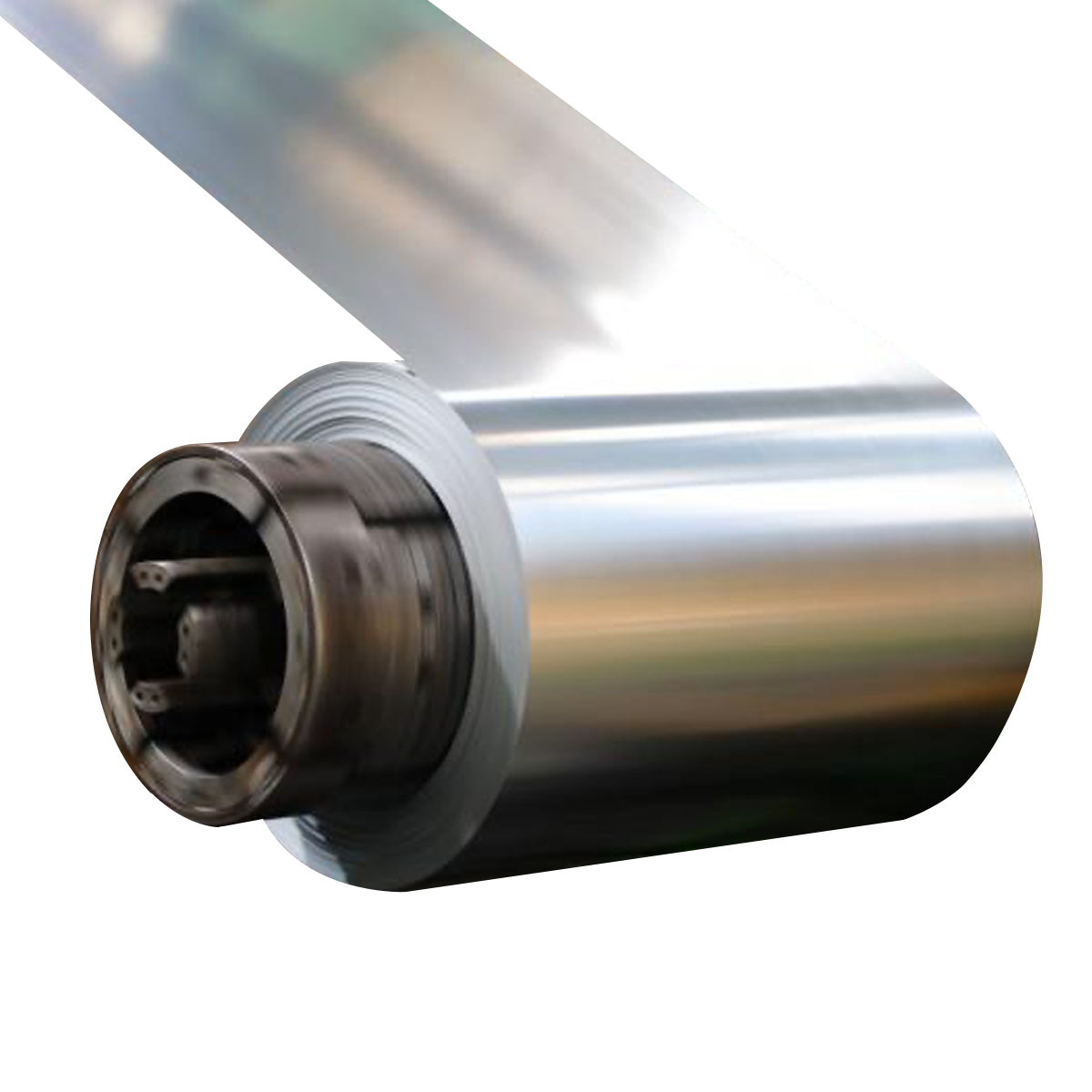

Galvanized Steel Coils, Sheets, Strips

Standards: AISI, ASTM, BS, DIN, GB, JIS

Material Grades: SGCC, SGCH, DX51D, DX52D, DX53D, S350GD, etc.

Thickness Range: 0.12 – 4.0 mm

Zinc Coating: 40 – 275 g/m²

Surface Finish: Zero Spangle, Minimum Spangle, Big Spangle

Hardness:

Soft (HRB ≤ 60)

Medium Hard (HRB 60–85)

Full Hard (HRB 85–95)

Product Type:

Hot-Dipped Galvanized Steel

Galvalume

Zinc Alloy-Coated Steel

Cold Rolled Steel

Aluminum

Standards:

SG3322

CGLCC

ASTM A755 CS-B

Thickness Range: 0.16 – 1.2 mm

Description:

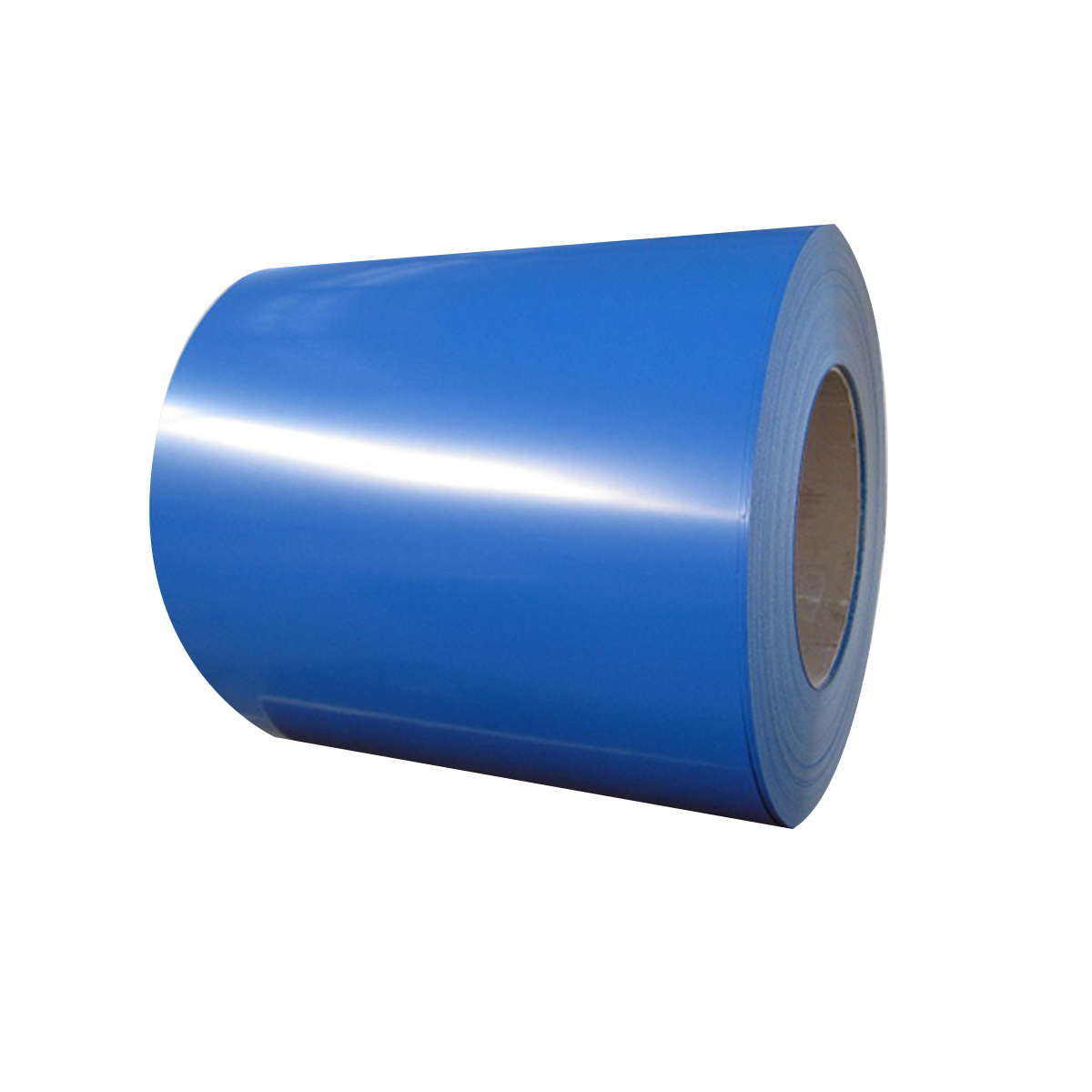

Manufactured with GI (galvanized) or GL (galvalume) as the substrate, the steel undergoes surface pre-treatment, paint coating, baking, and cooling. This process forms an organic protective film on the steel surface.

Product Type:

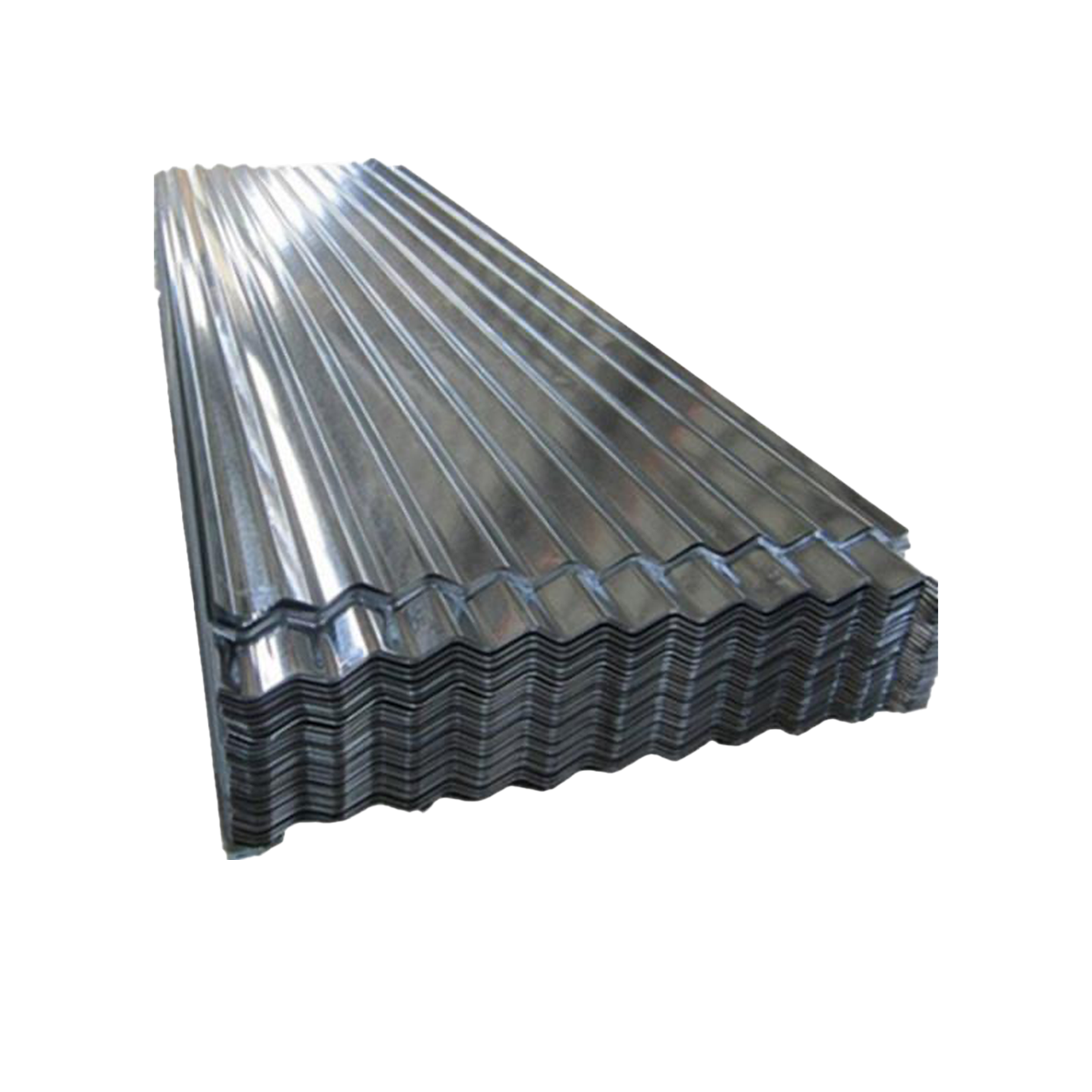

Galvanized Corrugated Steel Roofing Sheet

Standards:

AISI, ASTM, GB, JIS

Material Grades:

SGCC, SGCH, G550, DX51D, DX52D, DX53D

Thickness Range:

0.14 – 0.45 mm

Description:
Produced from galvanized sheet metal, cold-rolled and wave-formed into corrugated profiles. The sheets are lightweight, durable, and designed to provide excellent strength and weather resistance.

Product Type:

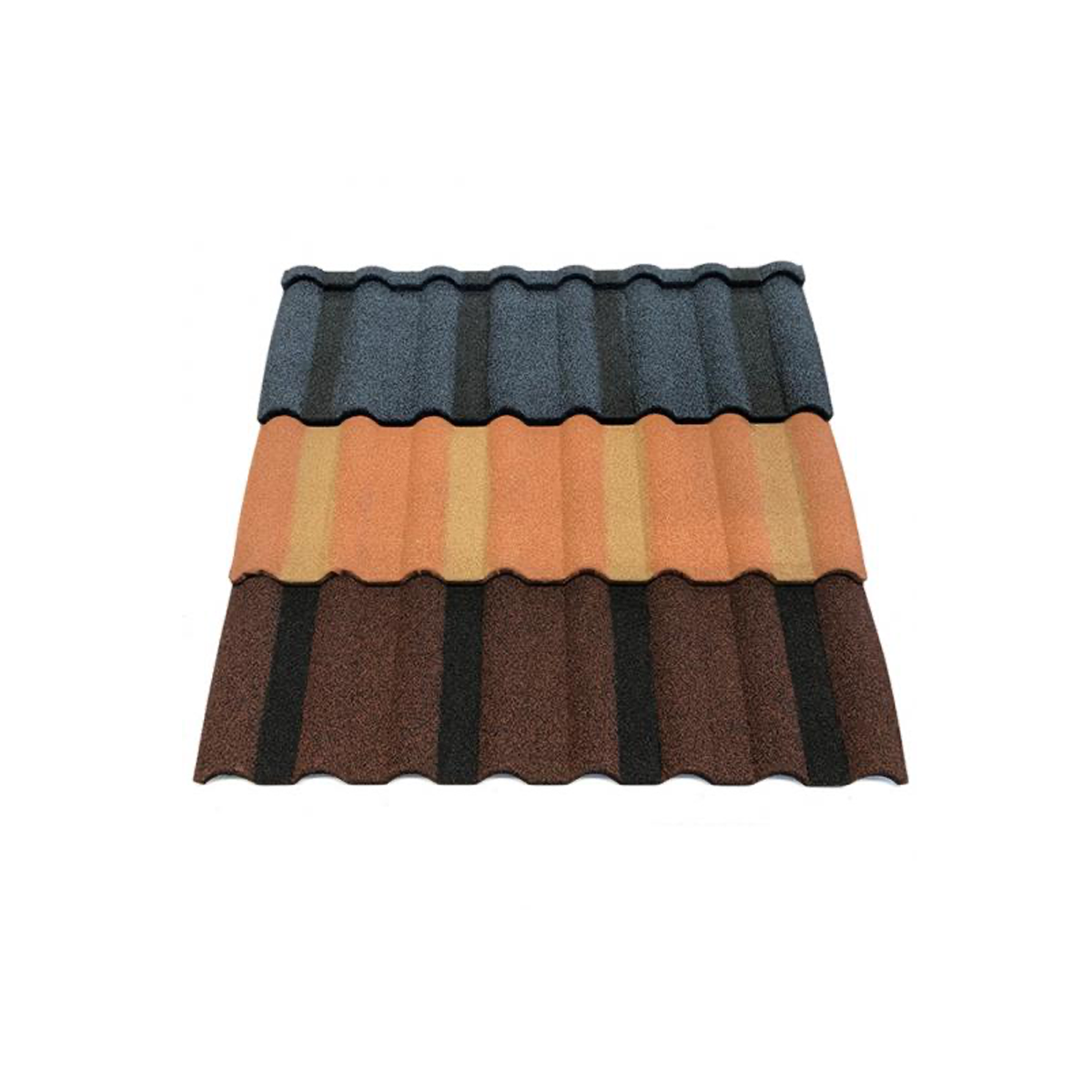

Color Stone Chip Coated Roofing Sheet

Standards:

AISI, ASTM, GB, JIS

Material Structure:

Protective Layer

Galvalume Coating

Steel Base

Galvalume Coating

Protective Layer

Acrylic Glue Layer

Stone Chips

Acrylic Glazing Layer

Thickness Range:

0.25 mm, 0.30 mm, 0.35 mm, 0.40 mm, 0.45 mm, 0.50 mm

Surface Finish: Color Stone Chip Coated

Tile Specifications:

Available Thicknesses: 0.35 mm, 0.40 mm, 0.45 mm

Weight per Tile: 2.2 – 2.8 kg

Overall Sizes: 1170 × 420 mm, 1335 × 420 mm

Effective Sizes: 1080 × 375 mm, 1280 × 375 mm

Available Colors: Red, Coffee, Black, etc.

Packing: 500–600 pcs per pallet
