Storage Tanks
Here are all the storage tanks we offer, select the one you need.
Here are all the storage tanks we offer, select the one you need.

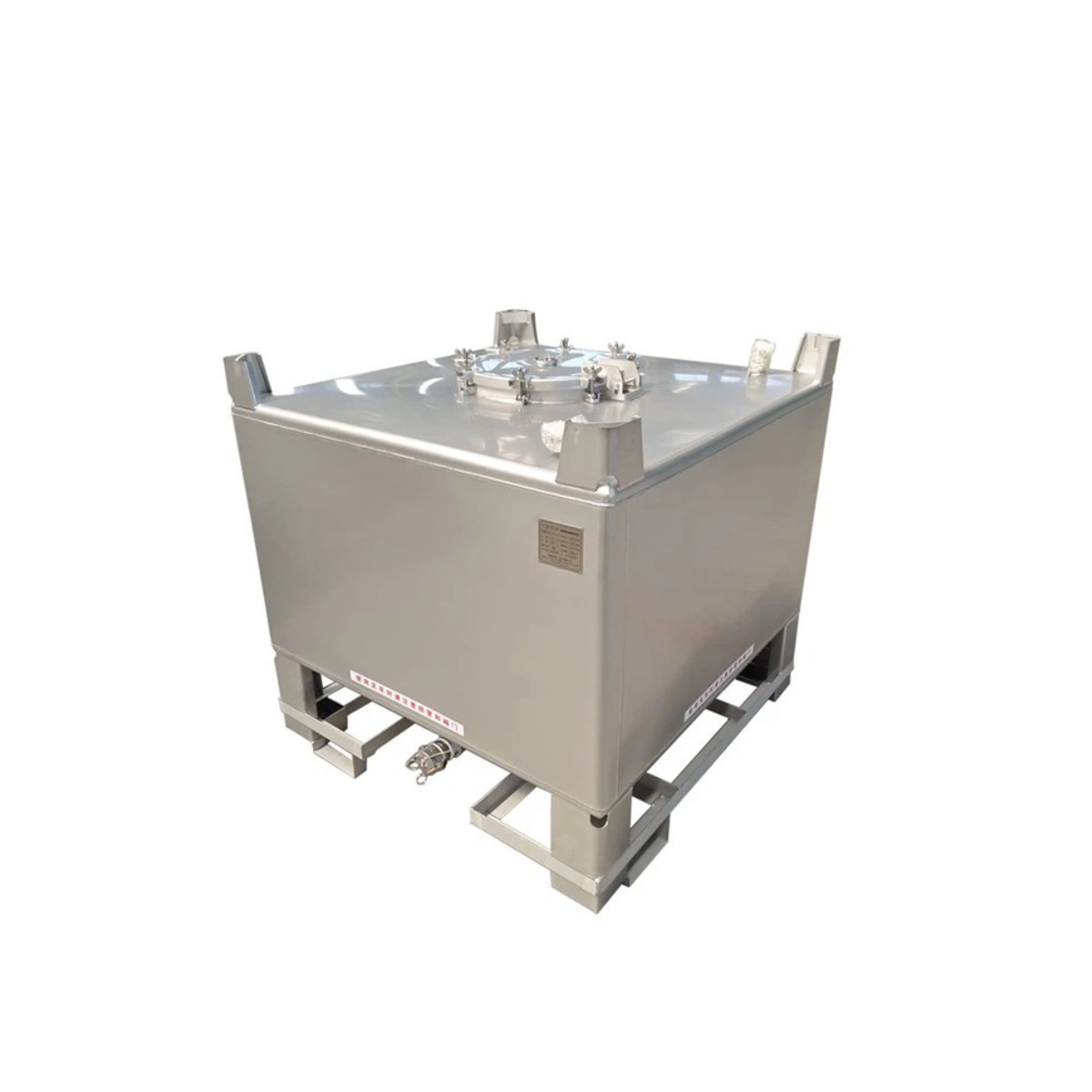

Our UN-certified stainless steel IBC tank (Packing Group II & III) is engineered for efficiency and durability.
Advantages:
- Fast, residue-free discharge
- High-temp & pressure washable
- Long service life
- Recyclable & eco-friendly
- Stackable for easy storage
Specifications:
Tank body thickness: 2.0 mm (GB material, actual 1.9 mm)
Double-side welding: inside & outside
Net weight (empty): 130.5 ±1 kg
Stacking capacity: full tank – 2 layers static / 1 layer dynamic; empty tank – 4 layers

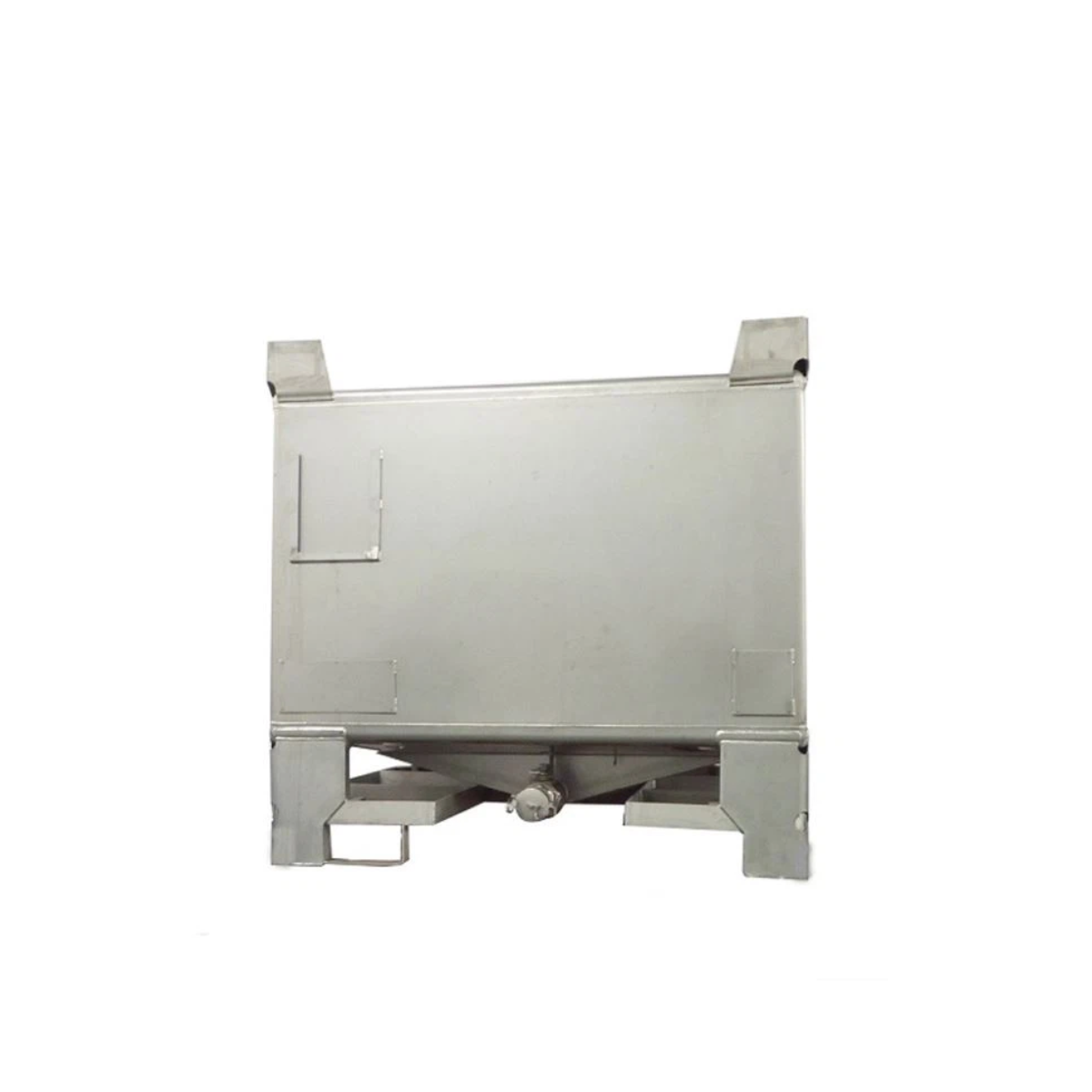

The 1000L UN-approved tote tank is made of SUS304 stainless steel (optional 316/316L, carbon steel) with acid-washed inner and outer surfaces. Designed for Packing Group II & III hazardous and non-hazardous liquids, it can be stacked two layers in a 20-foot container, fitting 20 units to save up to 50% transport cost.
Specifications:
Capacity: 1000L
Dimensions: 1152 × 1152 × 1140 mm
Thickness: 2.5 mm
Hydraulic test pressure: 65/200 kPa
Forklift access: four-way entry

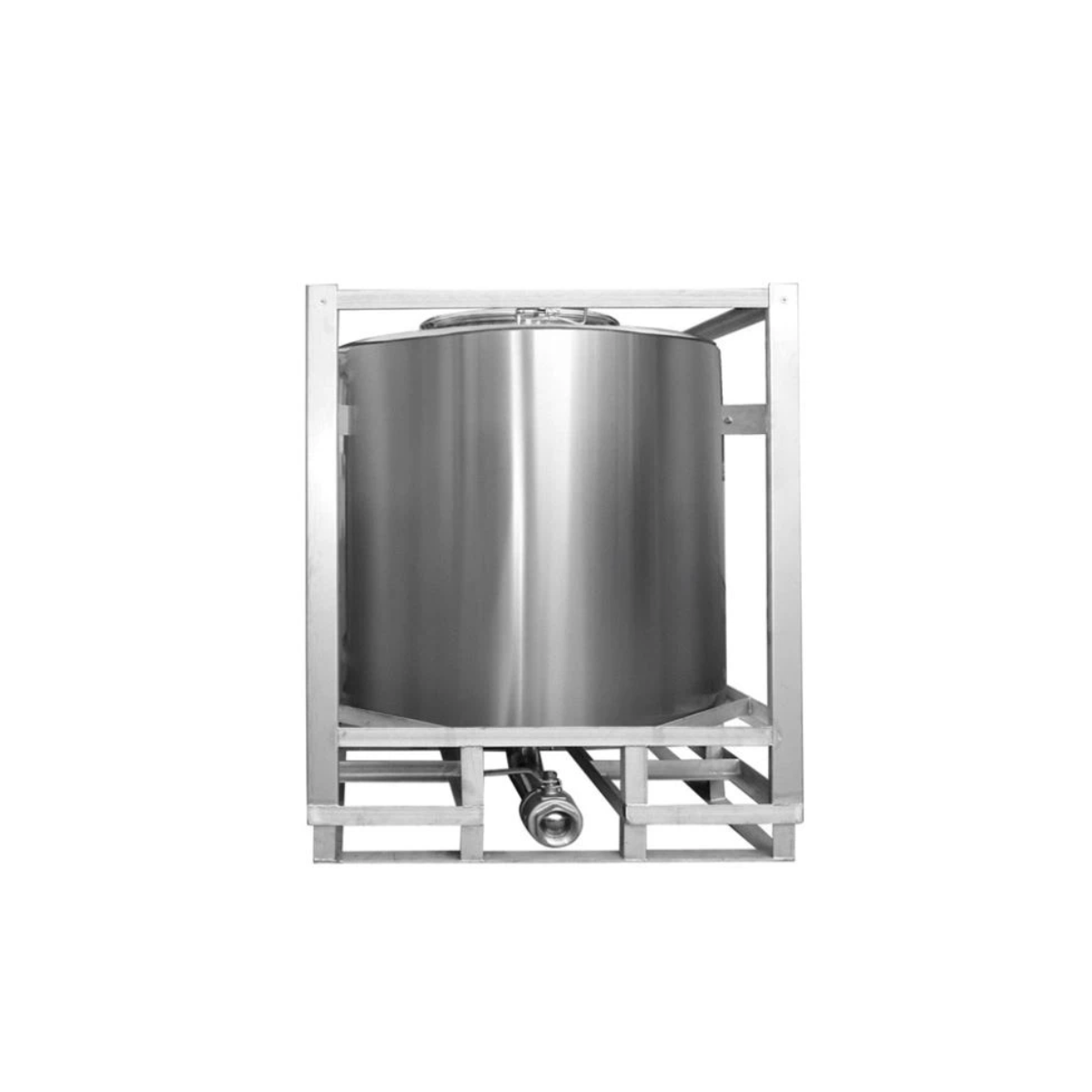

Made of sanitary stainless steel 304/316L, this tank offers excellent corrosion resistance and a 10–15 year service life. It is ideal for storing and transporting thick liquid products such as shampoo, juice, glue, and chemical solvents.
Specifications:
Capacity: 1000L
Frame: Hot-dip iron
Dimension: 1130 × 1130 × 1450 mm
Pressure: 0.025 MPa
Surface treatment: External 200# polishing, internal 400# polishing
Parts: Manhole, air vent, safety valve, discharge valve
OEM/ODM: Available
Options & Accessories:
Material: SUS304 / 316 / 316L
Structure: Single, double, or triple-layer stainless steel
Accessories: Level gauge, air breathing valve, thermometer, CIP cleaning ball, sight glass, explosion-proof light, SIP sterilization port
Applications: Shampoo · Juice · Glue · Chemical solvents
